Welcome to our CAD department. Bring in your napkin drawing, or email a file. We use State-of-the-Art 3D solid modeling software to produce a drawing of your part or assembly.

During this process we can assist in the layout and construction of your part so that you can cut manufacturing costs when possible.

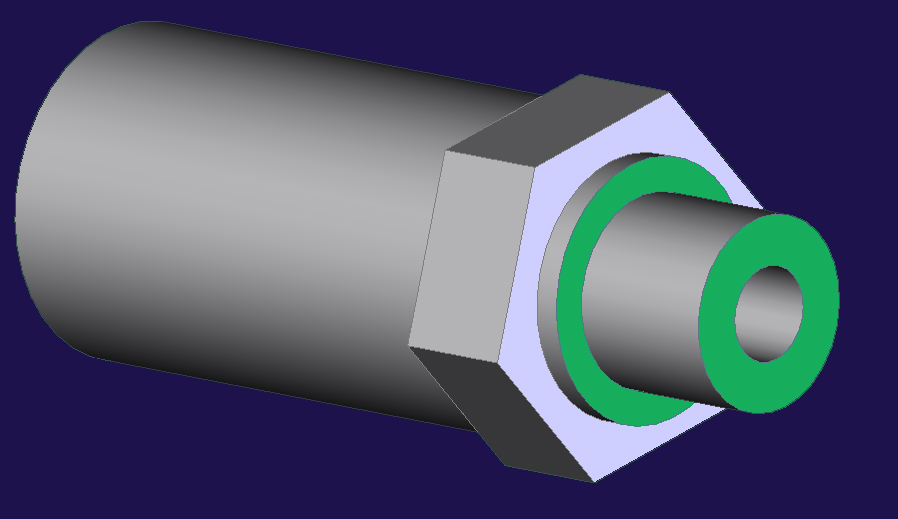

We will use our latest version of Solid Works to provide a 3 dimensional drawing of your project. From the project drawing we can create a CNC program for our machines. We are happy to provide you with a cad drawing of your part or assembly if you don't already have one. Use this computer generated drawing to advertise your product. / have it manufactured or get quotes from different prototype house. The Solid Works rendering is a standard in the industry. The geomertry is in the drawing so it can easly be converted to CAM software. In fact that's the way we do it at ALPHA PLASTIC AND DESIGN ( Machining Division. )
